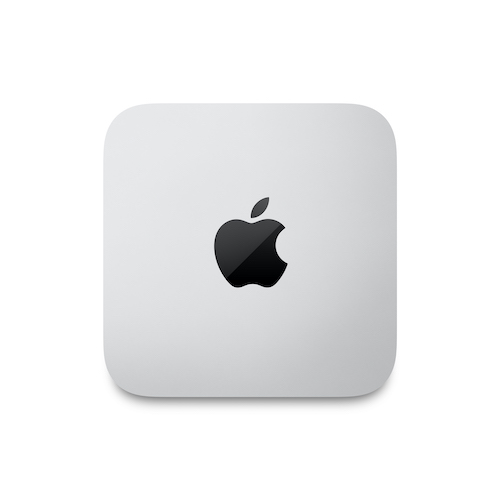

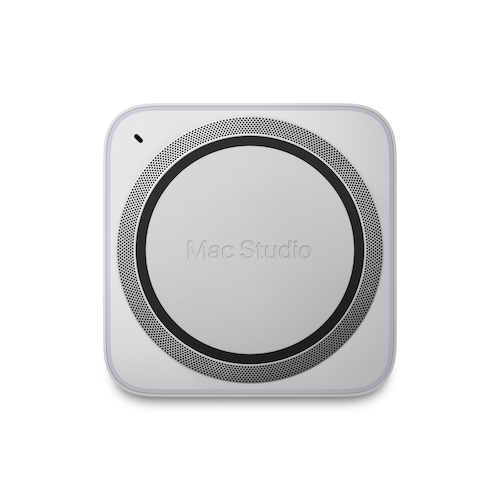

MacStudio M3 Ultra 28c CPU, 60c GPU, 96GB, 1TB

Mac Studio. Supercharged by M3 Ultra.

Our most advanced chip delivers unprecedented power for the most demanding professionals. Whether you’re loading massive datasets for large language models, editing a feature film, or composing a symphony, this chip does it all.

3D rendering, LLM throughput, DNA sequencing, Video editing, AI video processing, Code compiling

Tech Specs

Apple M3 Ultra chip

• 28-core CPU with 20 performance cores and 8 efficiency cores

• 60-core GPU

• Hardware-accelerated ray tracing

• 32-core Neural Engine

• 819GB/s memory bandwidth

Media Engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

• Two video decode engines

• Four video encode engines

• Four ProRes encode and decode engines

• AV1 decode

Configurable to:

M3 Ultra with 32‑core CPU, 80‑core GPU, and 32‑core Neural Engine (819GB/s memory bandwidth)

Memory

• 96GB unified memory

• Configurable to:

• 256GB or 512GB (M3 Ultra with 32-core CPU and 80‑core GPU)

Storage

• 1TB

• 1TB SSD

• Configurable to:

• 2TB, 4TB, 8TB, or 16TB

Display Support

M3 Ultra

• Simultaneous support for up to eight displays:

• Eight displays with up to 6K resolution at 60Hz or 4K resolution at up to 144Hz
• Four displays with up to 8K resolution at 60Hz or 4K resolution at up to 240Hz

• Thunderbolt 5 digital video output

• Support for native DisplayPort 2.1 output over USB‑C

• HDMI display video output

• Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
• Support for variable refresh rate (VRR), HDR, and multichannel audio

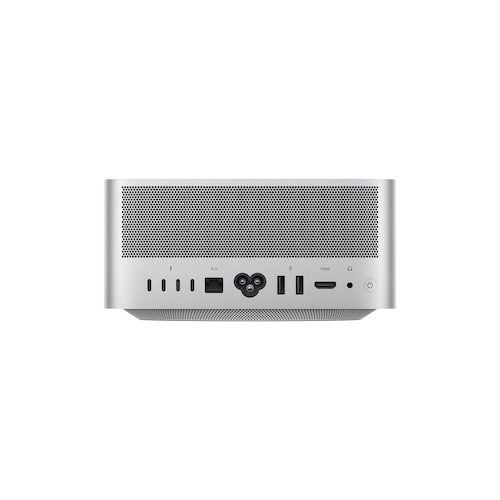

Connections and Expansion

Four Thunderbolt 5 (USB‑C) ports with support for:

• Thunderbolt 5 (up to 120Gb/s)
• USB 4 (up to 120Gb/s)
• USB 3 (up to 10Gb/s)
• DisplayPort 2.1
• Two USB 3 (USB‑A) ports (up to 5Gb/s)
• HDMI 2.1 port
• 10Gb Ethernet
• 3.5 mm headphone jack

On front (M3 Ultra):

• Two Thunderbolt 5 ports (up to 120Gb/s)
• SDXC card slot (UHS-II)

Size and Weight

• Height: 3.7 inches (9.5 cm)
• Width: 7.7 inches (19.7 cm)
• Depth: 7.7 inches (19.7 cm)
• Weight: 8.0 pounds (3.64 kg)⁴
